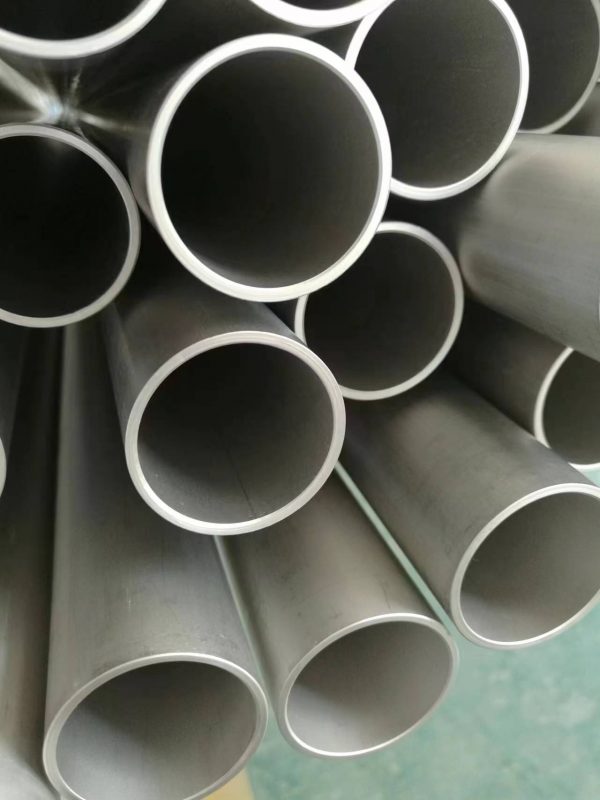

ASTM B338 Gr.2 Round Seamless Titanium Alloy Pipe/Tube for Construction
Titanium tube
Titanium is a metal element, English name: Titanium, chemical symbol Ti, atomic number 22, belonging to IVB group of metal elements on the periodic table. The melting point of titanium is 1660°C, the boiling point is 3287°C, and the density is 4.54g/cm³. Titanium is a gray transition metal characterized by lightweight, high strength and good corrosion resistance. Because of its stable chemical properties, good high-temperature resistance, low-temperature resistance, strong acid resistance, strong alkali resistance, high strength and low density, it is known as “space metal”.
Titanium and titanium alloy pipes Reference standards: GB228 metal pipe tensile method
GB241 metal pipe hydraulic test method GB246 Metal tube flattening test method.
GB/T3620.1 Titanium and titanium alloy spleen number and chemical composition
GB/T3620.2 Allowable Deviation of Chemical Composition of Titanium and Titanium Alloy Processing Products
Description
1.Specification
| Name | Titanium Seamless Tube & Pipe |
| Material | Pure Titanium, Titanium Alloy |
| Purity | 99.5% |
| Standard | ASTM B338/ASME SB338, ASTM B337/ASME SB337, ASTM B861/ASME SB861, ASTM B862/ASME SB862,AMS4911,AMS4928 |
| Material Grade | GR1, GR2, GR3,GR4, GR5, GR7,GR9, GR12, GR16, GR17, GR23,Ti-6Al-4V ELI, Ti-3-8-6-4-4, Ti-6-2-4-2, Ti-6-6-2 etc. |
|
Size |
Length: 50-6000mm or according to customer requirements |
| Outer diameter: 3-300mm or according to customer requirements | |
| Wall thickness: 0.2-5.5mm or according to customer requirements | |
| Section shape | Round / Square/Customized |
|
Tolerance |
1) Outer Diameter: +/- 0.01mm
2) Thickness: +/- 0.01mm |
| Surface | Pickling, annealing, polishing, bright. |
|
Feature |
1.Low density and high strength 2.Excellent corrosion resistance 3.Good resistance to effect of heat 4.Excellent bearing to cryogenic property 5.Nonmagnetic and Non-toxic 6.Good thermal properties 7.Low modulus of elasticity |
| Test | Squash test, extended test, water pressure test, crystal rot test, heat treatment, NDT |
| Application
|
Petrochemical, Water Treatment, Desalination, Condenser, Power Generation Medical, Chemical Processing, Marine, Aerospace, Oil, Sports, Bike and other Industries etc. |
2. Technology Data of Titanium Tube
| Grade |
Element Composition, % |
||||||||
|
Ti |
Al | V | Fe | C | N | H |
0 |
Other, Max | |
| Grade 1 | Balance | 0.2 | 0.8 | 0.03 | 0.015 | 0.18 | 0.4 | ||
| Grade 2 | Balance | 0.3 | 0.8 | 0.03 | 0.015 | 0.25 | 0.4 | ||
| Grade 3 | Balance | 0.3 | 0.8 | 0.05 | 0.015 | 0.25 | 0.4 | ||
| Grade 4 | Balance | 0.5 | 0.8 | 0.05 | 0.015 | 0.4 | 0.4 | ||
| Grade 5 | Balance | 5.5-6.75 | 3.5-4.5 | 0.4 | 0.8 | 0.05 | 0.015 | 0.5 | 0.4 |
| Grade 7 | Balance | 0.03 | 0.8 | 0.03 | 0.015 | 0.25 | 0.4 | ||
| Grade 9 | Balance | 2.5-3.5 | 2.0-3.0 | 0.3 | 0.05 | 0.02 | 0.015 | 0.2 | 0.4 |
3. Production Process
4. FAQ
Q1. –How to ensure the quality of your products?
A: IS09000, client requirements, product standards, strict inspection to control raw material, production process and final products
Q2. –Can you print our LOGO on the products?
A: Sure, and we welcome the customized products.
Q3. –What’s your MOQ?
A: Sample order is acceptable, and some samples can be free. We’re here to help our customers get their jobs done, so we’ll give your order the same priority and respect, whether it’s a single order for a one-off project or a production run of thousands.
Q4. –What about the payment terms?
A: T/T, Western Union
Q5. –What is the necessary information for an inquiry?
A: Product name, standard, specification, material grade and quantity.
