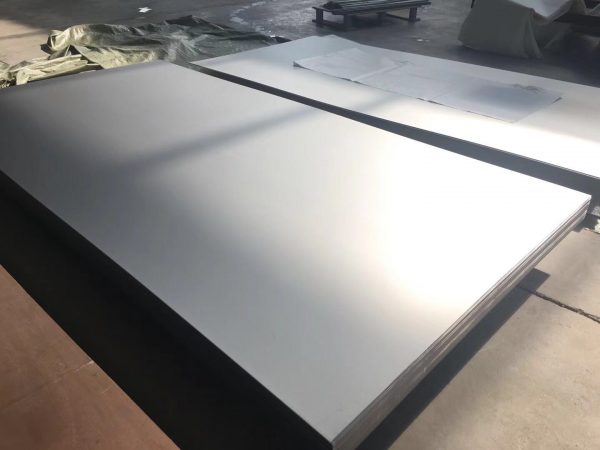

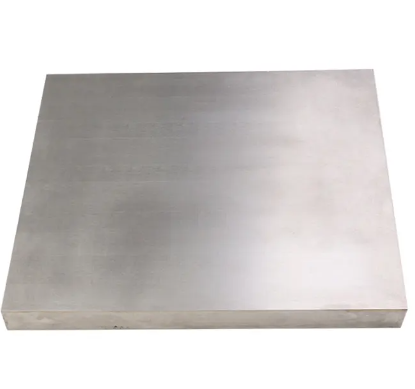

Titanium alloy sheet plate Gr2 Gr5 bars and sheets
Titanium plate characteristics
- Titanium plate is the surface of the oxide film is equivalent to a good long-term wear-resistant release agent, the use of titanium plate to save the separation agent, so that easy to peel off the plate, eliminating the pre-treatment process, The board is lighter than the copper plate.
- Titanium plate of the life of copper plate is more than 3 times, according to operating conditions up to 10 to 20 years
- With titanium plate made of electrolytic copper crystal structure dense, smooth surface, excellent quality.
- Since the titanium plate does not need to apply the separating agent, it can avoid the pollution of the copper electrolyte.
- To improve production capacity to reduce the cost of electrolytic copper production, which has a better economic benefit.
Applications:
metallurgy, electronics, medical, chemical, petroleum, medicine, aerospace and so on.
Description
1.Specification
| Grade | TA1, TA2, TA3, TA4, TA10, TA15, TA17, GR1, GR2, GR3, GR4, GR5, GR7, GR9,
GR11, GR12 |
| Size | T (0.6mm – 2.0mm) * W (1000mm) * L (3000mm max)T (3.0mm- 5.0mm)*W
(1250mm)* L (3500mm max) T (6.0mm – 60mm) * W (2500mm max)* L (7000mm max) |
| Standard | ASTM B 265, ASME SB265 AMS491 |
| Application | Chemical, industry, sports etc. |
| Feature | High corrosion resistance, low density, good thermal stability |
| Surface | Bright, Polished, Pickling, Acid cleaning, Sandblasting |
| Test | Hardness test, Bending test, Hydrostatic etc. |
| Finish | Roll-up(Hard) |
| Surface | Polished |
| Application | Petrochemical, Water Treatment, Desalination, Condenser, Power Generation Medical, Chemical Processing, Marine, Aerospace, Oil, Sports, Bike and other Industries etc. |
2. Technology Data of Titanium Plate
| Grade | Tensil strength(min) | Yeild strength(min) | Elongation (%) | ||
| ksi | MPa | ksi | MPa | ||
| 1 | 35 | 240 | 20 | 138 | 24 |
| 2 | 50 | 345 | 40 | 275 | 20 |
| 5 | 130 | 895 | 120 | 828 | 10 |
| 7 | 50 | 345 | 40 | 275 | 20 |
| 9 | 90 | 620 | 70 | 438 | 15 |
| 12 | 70 | 438 | 50 | 345 | 18 |
3. Production Process
4. FAQ
Q1. –How to ensure the quality of your products?
A: IS09000, client requirements, product standards, strict inspection to control raw material, production process and final products
Q2. –Can you print our LOGO on the products?
A: Sure, and we welcome the customized products.
Q3. –What’s your MOQ?
A: Sample order is acceptable, and some samples can be free. We’re here to help our customers get their jobs done, so we’ll give your order the same priority and respect, whether it’s a single order for a one-off project or a production run of thousands.
Q4. –What about the payment terms?
A: T/T, Western Union
Q5. –What is the necessary information for an inquiry?
A: Product name, standard, specification, material grade and quantity.
